Device Variants

							 	 		 			| Device Code | Description | Power | Dimensions (W x D x H mm)
 |
 		 			| BCB600-1 | 600mm Charbroiler* | GAS 14.8kW
 | 643 x 790 x 528 |

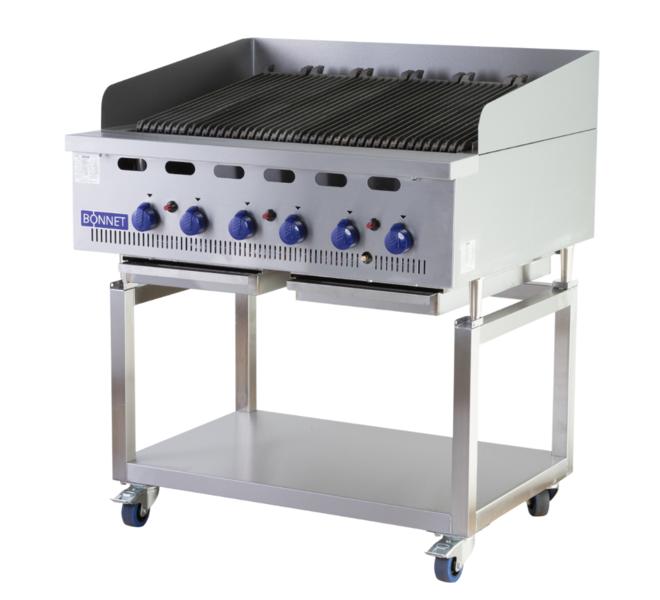

 		 			| BCB900-1 | 900mm Charbroiler* | GAS 22.2kW
 | 914 x 790 x 528 |

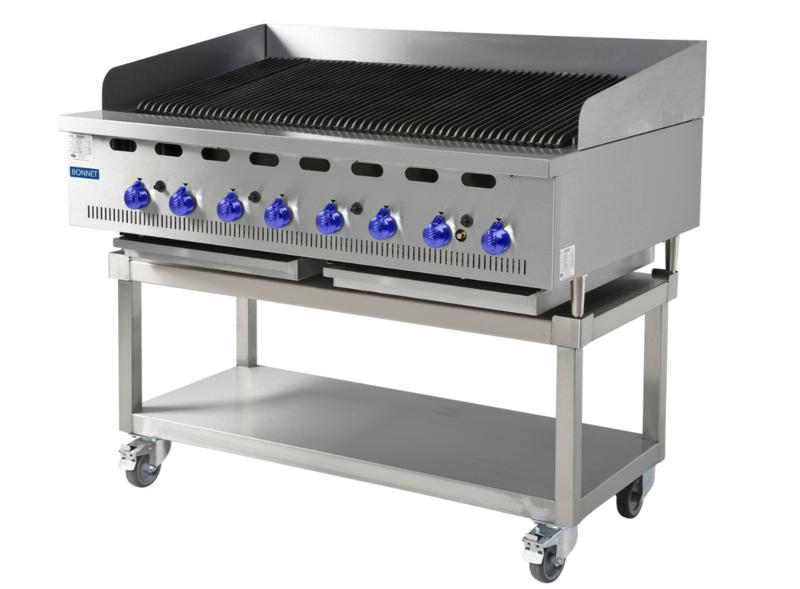

 		 			| BCB1200-1 | 1200mm Charbroiler* | GAS 29.6kW
 | 1185 x 790 x 528 |
 		 			| BCB1500-1 | 1500mm Charbroiler* | GAS 37.0kW
 | 1535 x 790 x 528 |

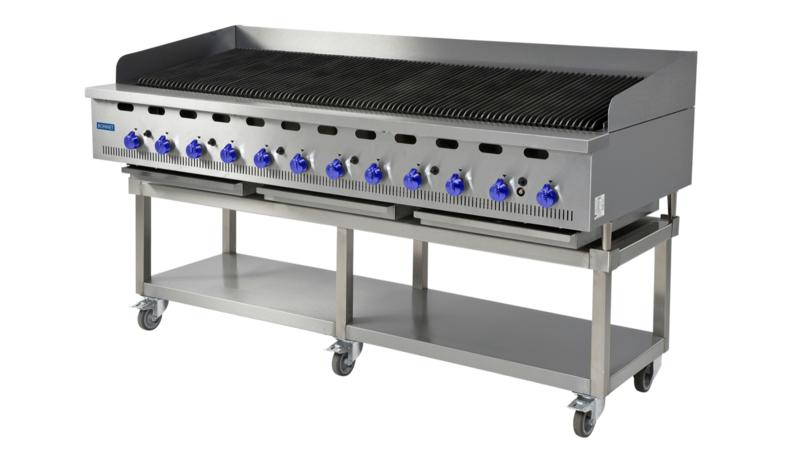

 		 			| BCB1800-1 | 1800mm Charbroiler* | GAS44.4kW
 | 1844 x 790 x 528 |

 	 		 			| *Also available in LPG Gas configuration by changing -1 on code to -2, power requirements may vary. |
 		 			| Please note- when mounting on a table you need to add locating cups (see Charbroiler Accessories in Pricelist) |





							Product Features


					 	- Improved thermal efficiency and heat targeted to the cooking area
- Increased cooking area and reduced ambient temperatures
- Removable grates and cassette style heat deflectors for simple cleaning
- Individually controlled main burners, secondary ignition Piezo pilot burners and a waterless drip tray
- Constructed from robust, strong stainless steel

The Bonnet Charbroiler now includes as standard:
 	- 3 Sided splash guard
- Grate scraper
- Grate lifting tool
- Splash guard cleaning tool
- Fry plate is available as an accessory for optimum flexibility
View Product Brochure





					Technical data


				Click the link below to download technical Information
Downloads





				Accessories
				 	 		 			| Device Code | Description |
 	 	 		 			| RSHELF-900 | Resting Shelf BCB 900mm |
 		 			| RSHELF-1200 | Resting Shelf BCB 1200mm |
 		 			| RSHELF-1500 | Resting Shelf BCB1500mm |
 		 			| RSHELF-1800 | Resting Shelf BCB 1800mm |
 		 			| LLC-BCB | Set of 4 Locating Cups for BCB Feet |
 		 			| GST-BCB | Grate Scrapping Tool |
 		 			| GLT-BCB | Grate Lifting Tool |
 		 			| SBCT-BCB | Splash Back Cleaning Tool |
 		 			| MST600 | Mobile Stand for BCB600 |
 		 			| SST600 | Static Stand for BCB600 |
 		 			| MST900 | Mobile Stand for BCB900 |
 		 			| SST900 | Static Stand for BCB900 |
 		 			| MST1200 | Mobile Stand for BCB1200 |
 		 			| SST1200 | Static Stand for BCB1200 |
 		 			| MST1500 | Mobile Stand for BCB1500 |
 		 			| SST1500 | Static Stand for BCB1500 |
 		 			| MST1800 | Mobile Stand for BCB1800 |
 		 			| SST1800 | Static Stand for BCB1800 |
 		 			| 00-739397 | Stainless Steel Fry Plate |
