Device Code | Description | Power | Dimensions (H x W x D mm) | Cycle Times (seconds) |
TLWW-10A | Two-level dishwasher with 1 Plate Rack, 1 Cup Rack & 1 Cutlery basket | 13.6kW 400/50/3 (9.1) (Fuse at 3 x 25A) Configurable to: 10.4kW 400/50/3 (9.1) (Fuse at 3 x 16A) | 1510 x 713 x 915 | 60, 90, 180 PDF |
TLWSW-10A | Two-level dishwasher with 1 Plate Rack, 1 Cup Rack, 1 Cutlery basket | 13.6kW 400/50/3 (9.1) (Fuse at 3 x 25A) Configurable to: 10.4kW 400/50/3 (9.1) (Fuse at 3 x 16A) | 1510 x 713 x 915 | 60, 90, 180 PDF |

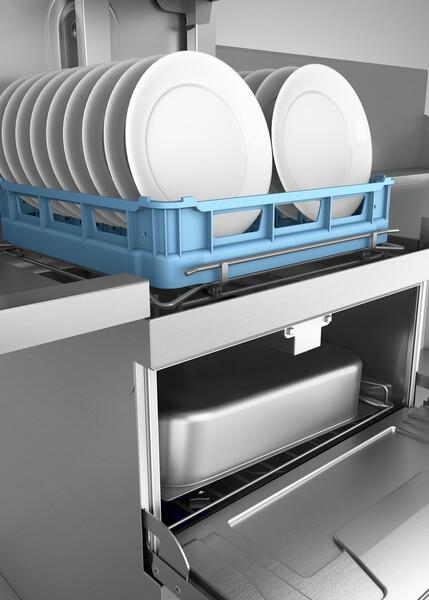

The TLW provides twice the capacity of a conventional hood-type dishwasher, thanks to an additional wash chamber - but with the same operational space requirement.
Simultaneous washing of different wash ware, such as porcelain dishes, cutlery or cooking utensils, in two separate wash chambers. For heavily soiled wash ware, the TLW has a special utensil wash programme. Due to the extended washing time, the pre-soaking effect is already integrated into the washing process, so that the wash ware no longer need to be pre-soaked.
- Two-Level-Washer, for straight through and additional front door operation with 2 washchambers
- Nominal capacity up to 120 racks/h
- 7 automatic cycles: short, standard, intensive, starchremoval, permanent, hygiene, utensil
- Heat and noise insulated hood
- Strainer soil sensor
- Integrated WiFi module
- Self-cleaning programme
- USB-Interface for comfortable download of operational data
- Ready to install - completely equipped: fill / drain hose, electrical cable, detergent dispenser, rinse aid dispenser, rinse pump, drain pump, back-flow preventer
- Tank, frame, wash / rinse arms and panels are stainless steel 1.4301
Technical data
Click the link below to download technical Information
Downloads
Device Code | Description |
P18-12 | Plate Rack |
B00-07 | Cup Rack |
CB8 | Cutlery Basket |
B00-11 | Holloware Rack |
01-515960-001 | Back Panel |
