Product Features
Performance
Tilting heating elements (Electric power 15,3 KW) and thermostatic control between 105 °C and 185 °C 7 segment digital display Ergonomic knobs to set the temperature V shaped tank with large cold zone to minimise oil deterioration and extend oil life Cleaning and care:
Interior and exterior material: stainless steel AISI 304 Heating elements can be completely removed for thorough cleaning of the tank Oil drain system with filter in closed cabinet for added safety Recessed position of control knobs protecting them from impact and spillages Standard installation on 4 adjustable stainless steel feet. Wall-mounted or plinth installation optional Installation, maintenance and environment:
Standard installation on 4 adjustable stainless steel feet. Wall-mounted or plinth installation optional Professional installation by BONNET service partner is recommended Regular maintenance is recommended. Maintenance by BONNET service partner according to manufacturer's recommendations One year parts & labour warranty
Device Variants
Device Code Machine Description Power Dimensions
(W x D x H)

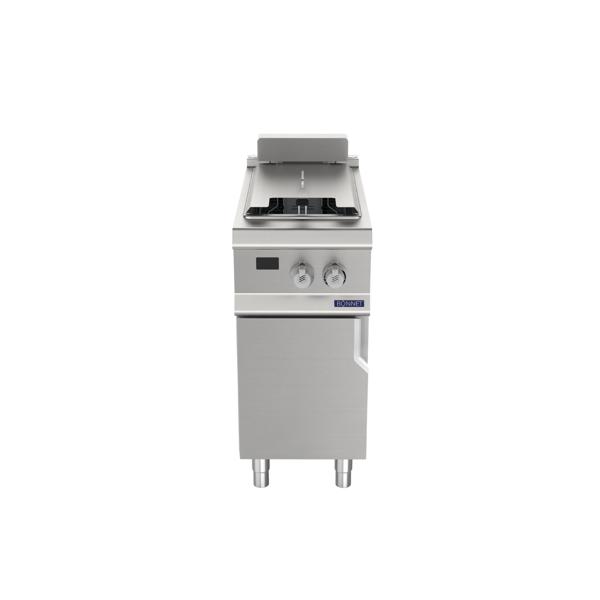

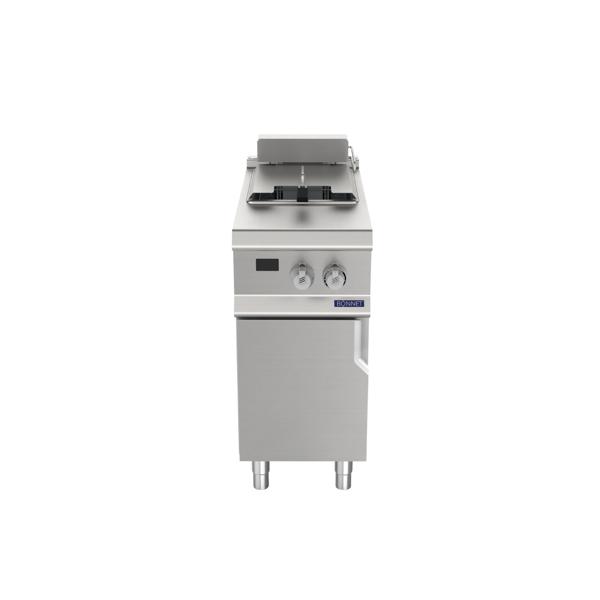

BOFX9FRD8BE Electric fryer on cupboard ELECTRIC 10.5kW (400/50/3) 400 x 900 x 900 BOFX9FR15BE Electric fryer on cupboard ELECTRIC 15.3kW (400/50/3) 400 x 900 x 900 BOFX9FR25BE Electric fryer on cupboard ELECTRIC 22.5kW (400/50/3) 400 x 900 x 900
Technical data
Click on the link below to download technical Information
Downloads
Accessories
Device Code Machine Description Power Dimensions (W x D x H) A770045 Electric fryer accesory* - 540 x 230 x 120 A980170 Electric fryer accesory* - 736 x 290 x 280 A980171 Electric fryer accesory* - 736 x 290 x 130 A777177 Electric fryer accesory* - 295 x 290 x 130 A650008 Electric fryer accesory* - 115 x 290 x 120 A980131 Electric fryer accesory* - 668 x 298 x 154 A777194 Electric fryer accesory* - Ø28 x - x 95 A980165 Electric fryer accesory* - 615 x 270 x 225 209314 Electric fryer accesory* - 370 x 387 x 145 209366 Electric fryer accesory* - 376 x 573 x 145
