Cooking functions gas burner: • 4 or 6 nickel plated cast iron burners 85/105 mm head with 7/10 kW • Protected pilot flame, easy to remove and clean • 3 easy to clean stainless steel AISI 304 burner grates • Waterbath to recover any spillages and avoid them burning on • Electric ignition as standard • Controlled by gas valve • Safety thermocouple
Cooking functions electric oven: • GN2/1 oven cavity with enamelled steel base and removable side runners • Tubular burner • Reinforced heating elements • Thermostatic electric valve control from 80 to 290°C + grill • Thermocouple safety with pilot and electric ignition as standard • GN 2/1 stainless steel grid and GN 2/1 stainless steel container (depth 40mm)
Device Variants
Device Code
Machine Description
Power
Dimensions (W x D x H)
BOFX9FV12FE
6 Burners on electric oven
ELECTRIC 6kW (400/50/3)
GAS 54 kW
5,710 m3/h
3,467 / 4,255 Kg/h
3,416 / 4,193 Kg/h
1200 x 900 x 900
BOFX9FV12FG

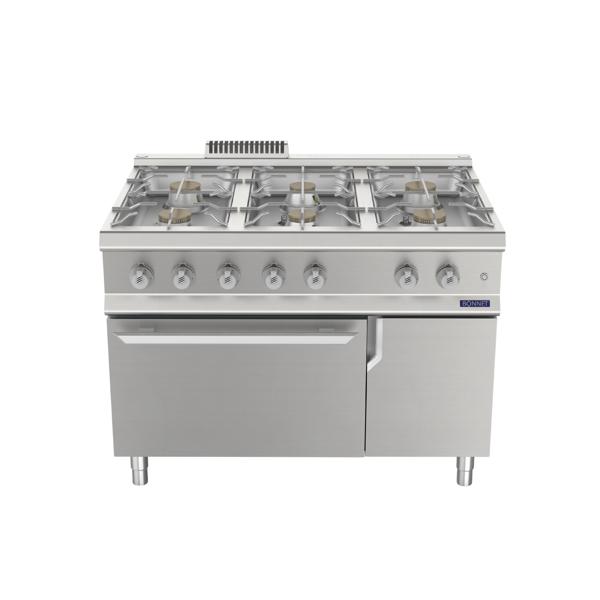

6 Burners on gas oven
ELECTRIC 10kW (230/50/1)
GAS 54 kW
7 kW
6,450 m3/h
4,018 / 4,806 Kg/h
3,960 / 4,736 Kg/h
1200 x 900 x 900
BOFX9FV8FG
4 Burners on gas oven
ELECTRIC 10kW (230/50/1)
GAS 34 kW
7 kW
4,355 m3/h
2,758 / 3,230 Kg/h
2,717 Kg/h
800 x 900 x 900
BOFX9FV8FE
4 Burners on electric oven
ELECTRIC 6kW (230/50/1)
GAS 34 kW
3,596 m3/h
2,206 / 2,678 Kg/h
2,174 / 2,640 Kg/h
800 x 900 x 900
Technical data
Click on the link below to download technical Information
